bubka
*
Karma: +2/-0
Posts: 25
Offline Offline
View Profile WWW
« on: February 09, 2009, 04:46:49 PM »
Alright, here is my setup.  I also have an erase pushing down on the red sync button so that when the power adapter is plugged in, the fixed ceiling mounted wiimote does not need to be synced by pressing the 1 & 2 buttons.

The power source:  Mutli-out DC adapter set to 3 volts, I have taped over the adjustment to prevent accidental over volting.


The wire is from the old analog CD-ROM output to sound card cable:

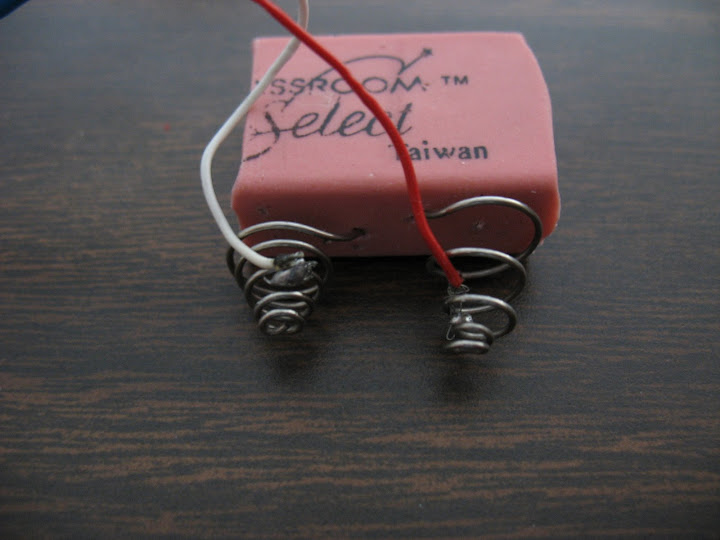

Springs with power cable mounted in a cut to fit eraser (insulator):

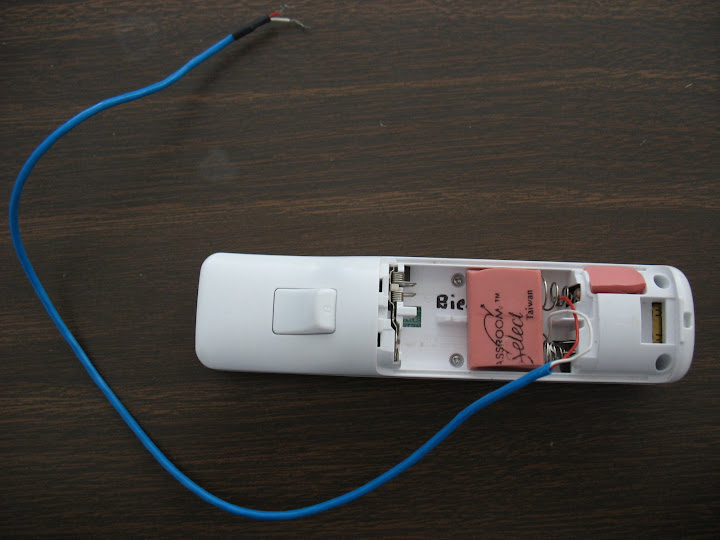

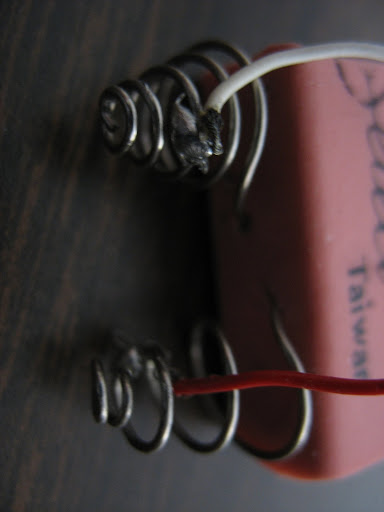

Wires soldiered on, although the one has broke lose, it is still fixed around the spring, complete circuit:

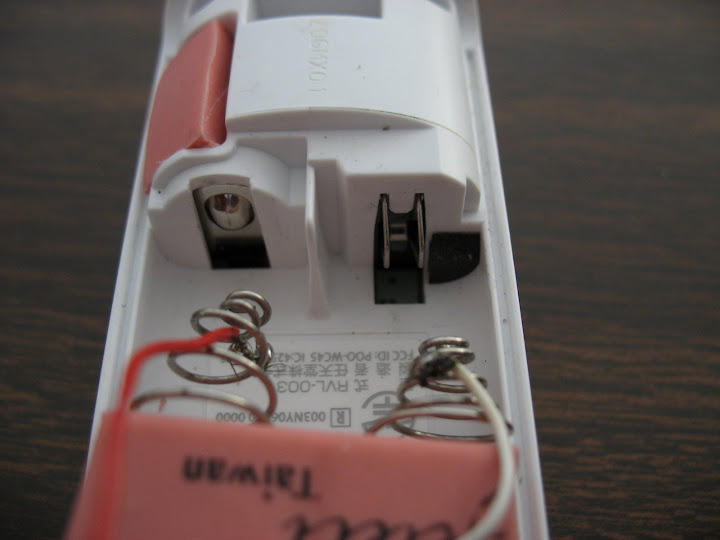

Placing it in:

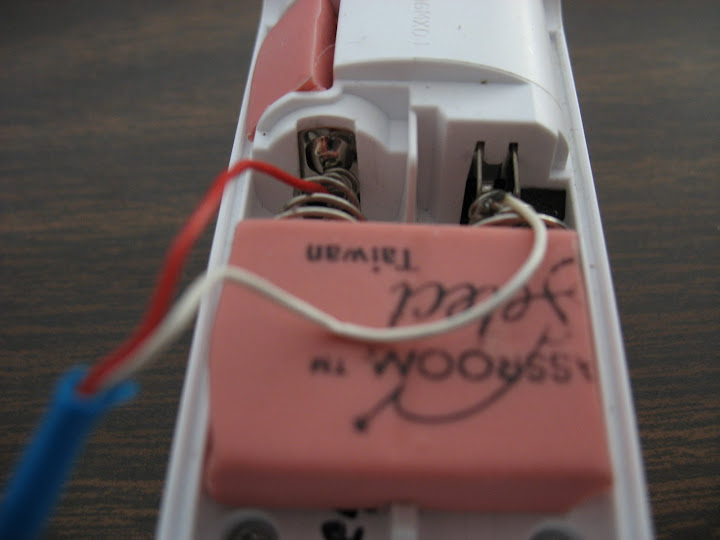

Fits snug, + on left, - on right:

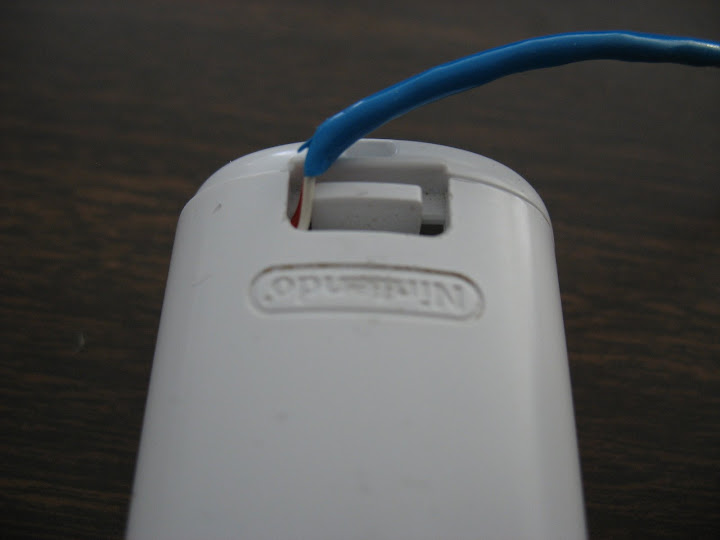

Cover back on:


Mounted high, yes that is a test tube clamp:
« Last Edit: February 09, 2009, 04:51:10 PM by bubka » Logged

http://www.wiimoteproject.com/wiimote-interactive-learning-and-pedagodgy-discussion/my-wiimote-interactive-whiteboard-setup/
danP
*
Karma: +0/-0
Posts: 12
Offline Offline
View Profile Email
« Reply #1 on: August 20, 2009, 03:44:03 AM »
Have tried Bubka's suggestion of  using an eraser to permently holding down the red sync button to enable the blue tooth connection when the Wiimote is attached to the ceiling etc.  It doesn't work as it only syncs for a set time and the lights stop flashing before I can connect .  However if I hold down buttons 1 & 2 permanently, I can connect remotely .What is the effect of permanently holding down buttons 1 & 2?
Logged
shakespeare1212
*
Karma: +0/-0
Posts: 57
Offline Offline
View Profile
« Reply #2 on: August 21, 2009, 02:02:43 AM »
Hey guys,

These are great ideas and they probably work but...  they look terrible.  I know this is sacrelige on THIS website but, why don't get rid of the wii remote and the blue tooth all together?  Can't somebody just put circuitry into a high resolution IR web cam so that it will do the blob tracking we need, and have a driver that was made for the PC / mac from the get go?

My monitor's built in web cam does not ask me to change batteries, or press two buttons every time I want to turn it on. When I want to get on yahoo or sype it just works.

That's what I want for all of us and the teacher's that we serve, a system that was designed to be an interactive white board from the beginning, not just the greatest "kludge" of all times. I want to turn on my computer, do a four point calibration at the beginning of the day and be done with it.

A wii mote for a white board will never make it into corporate meetings and ESPECIALLY not sales presentations.  It just looks too "geto".

Any PHD engineers out there? If Nintendo can sell the Wii remote for $40 with the camera and the buttons, and the motion sensor, and the connection for the nun chucks, etc., then it should be possible to manufacture and IR cam and blob tracker that ONLY has to be an IR cam and blob tracker, and sell it for 30 or 40 dollars.
Logged
