Hi All,

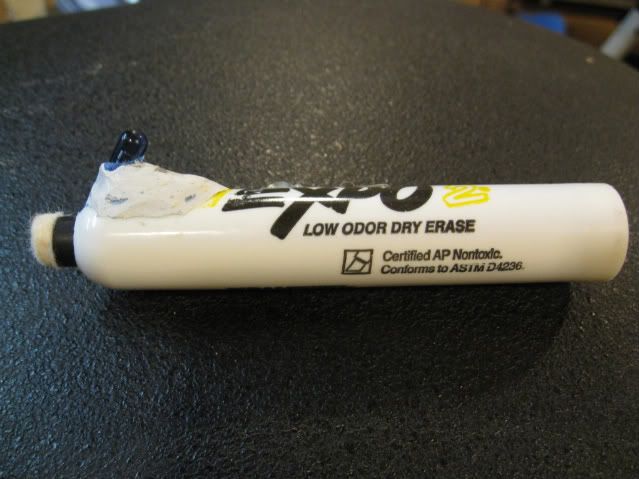

I just wanted to share my solution to spotty connectivity.  I mounted my led on top of the pen so that it faces the wiimote.  I used kneadable plumbers epoxy to hold the led and wiring in place.  I installed a switch at the tip and glued on a piece of felt so that it glides easily and won't scratch the whiteboard.  When writing with the pen the led is pointing directly at the wiimote which I have mounted on the side of my ceiling-mounted projector It works great.  Way beyond my expectations, actually.

Thanks,
Bruce



Logged
*
Karma: +0/-0
Posts: 97
Offline Offline
The soul of Dr. Nuclear
View Profile WWW
« Reply #1 on: December 03, 2009, 09:40:30 PM »

Good work,

All of my pens use the same idea. The LED should point at the Wiimote, no doubt about it.

James McLain.
Logged

James Mclain
Owner and Creator of
Whalebone IR and Software

http://whaleboneir.com

or view and buy our products on ebay:

http://ebay.com   Search for IR pen or products by shakespeare1212.
*
Karma: +0/-0
Posts: 48
Offline Offline
View Profile
« Reply #2 on: December 06, 2009, 07:09:03 AM »

LED does not need to point at wii remote. Properly made pens is all you need with the right LED.

Anyone needs help, let me know
Logged
Guru
*
Karma: +28/-0
Posts: 928
Online Online
Smoothboard Developer
View Profile WWW
« Reply #3 on: December 06, 2009, 05:33:48 PM »

Hi All,

If the LED is right and the screen surface is suitable, the IR light can be reflected off the screen.

However in special circumstances where the screen is huge or the screen material does not disperse the IR light sufficiently to the Wiimote, you may need to have the IR LED facing the Wiimote for better tracking.

Regards,
Boon Jin
Logged

Smoothboard
Wii Whiteboard/Wiimote Whiteboard with annotation features and collaborate with multiple iPads and Android Tablets!

Smoothboard for Mac
Using a Mac? Now you can annotate on PowerPoint or Keynote slideshows!

BoonJin[/url
*
Karma: +0/-0
Posts: 4
Offline Offline
View Profile
« Reply #4 on: July 06, 2010, 04:11:00 PM »

That is really wonderful, I like the pen too much, I am not having any IR pens so I might not be helpful to you but I think that there are very good suggestions given by all and I got knowledge about it.
